PoseFusion: Joint Registration and Fusion of Pose-wise Neural Implicit Surfaces for Multi-pose 3D Reconstruction

PoseFusion teaser — Given multi-view images captured under multiple object poses, PoseFusion automatically registers and fuses the geometry and appearance learned from each pose into a unified neural implicit surface. The resulting representation supports both mesh extraction and novel-view rendering, recovering geometry in regions that are poorly observed from any single pose.

Abstract

Recent advances in multi-view 3D reconstruction, especially neural implicit surface methods, can recover high-quality geometry by representing shape with signed distance functions (SDFs). However, reconstructing complex objects with severe self-occlusion remains difficult when all images are captured under a single object pose, because the observed views often provide incomplete spatial coverage. We propose PoseFusion, a multi-pose reconstruction framework that fuses neural implicit surfaces independently learned from different object poses into a unified 3D representation. PoseFusion follows a two-stage registration-and-fusion pipeline. First, we extract an oriented bounding box (OBB) from the mesh derived from each pose-specific SDF and use the OBBs, SDF samples, and multi-view image features to estimate a coarse inter-pose alignment. Second, we refine the alignment using image- and SDF-guided correspondences: cross-pose image matches are lifted to 3D using the learned SDFs and used to iteratively optimize the relative transformations. To facilitate evaluation, we construct a dataset of synthetic and real-world objects with complex geometry and strong self-occlusion, captured across multiple poses with calibrated multi-view images. Experiments show that PoseFusion is robust under challenging capture conditions and consistently produces high-fidelity reconstructions from multi-pose, multi-view inputs.

Video Overview

The video gives a quick overview of the multi-pose capture setting and shows how PoseFusion aligns pose-wise reconstructions into one fused neural implicit surface.

PoseFusion registers reconstructions from different object poses and combines their complementary observations into a more complete result.

Pipeline

PoseFusion is a two-stage registration-and-fusion pipeline:

Per-pose reconstruction. Each pose is reconstructed independently with a neural implicit surface.
Coarse registration. Oriented bounding boxes (OBBs) extracted from per-pose meshes provide candidate alignments, scored by SDF samples and ResNet-18 image features.
Fine registration. Cross-pose 2D correspondences from eLoFTR are lifted onto the zero-level set of the learned SDFs and used to refine the rigid transformation.
Fusion. Camera extrinsics from all poses are unified, and a single neural implicit surface is jointly retrained on the merged multi-view set.

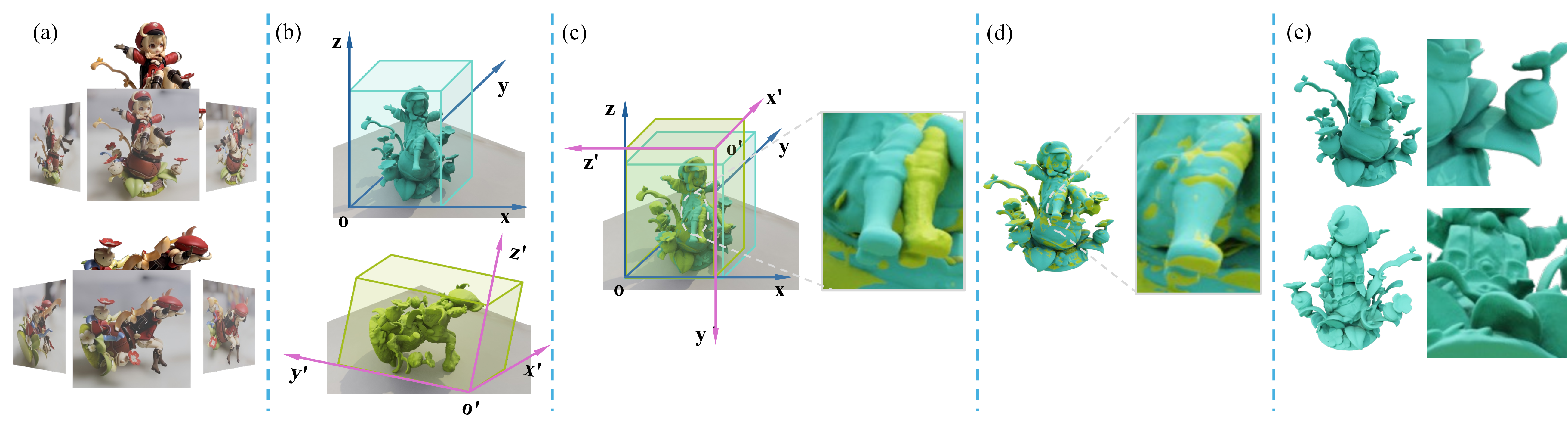

PoseFusion pipeline overview — Overview of the PoseFusion pipeline. (a) Input multi-view images from different poses. (b) Per-pose reconstructions using neural implicit surfaces. (c) Coarse alignment using oriented bounding boxes. (d) Fine alignment guided by image correspondences and SDF constraints. (e) Final fusion produces a complete 3D reconstruction with enhanced geometric details.

Method

Coarse registration

Without loss of generality, we set the first pose as the target P_t and align each remaining pose P_s pairwise to it. After extracting per-pose meshes from the learned SDFs, we apply PCA to obtain oriented bounding boxes O_s, O_t. The 24 candidate vertex correspondences between the OBBs define 24 rigid candidates τ_1…24. We score each candidate with a combined geometric–visual loss:

L_coarse = (λ_sdf / N_o) · Σᵢ ‖S_t⁽ⁱ⁾ − S_s⁽ⁱ⁾‖ + λ_img · ( 1 − cos( φ(I_t), φ(I_s) ) )

where φ(·) is the third residual block (conv3) of a ResNet-18 feature extractor. We empirically set λ_sdf = λ_img = 0.5 and sample N_o = 100,000 points on the OBB surfaces.

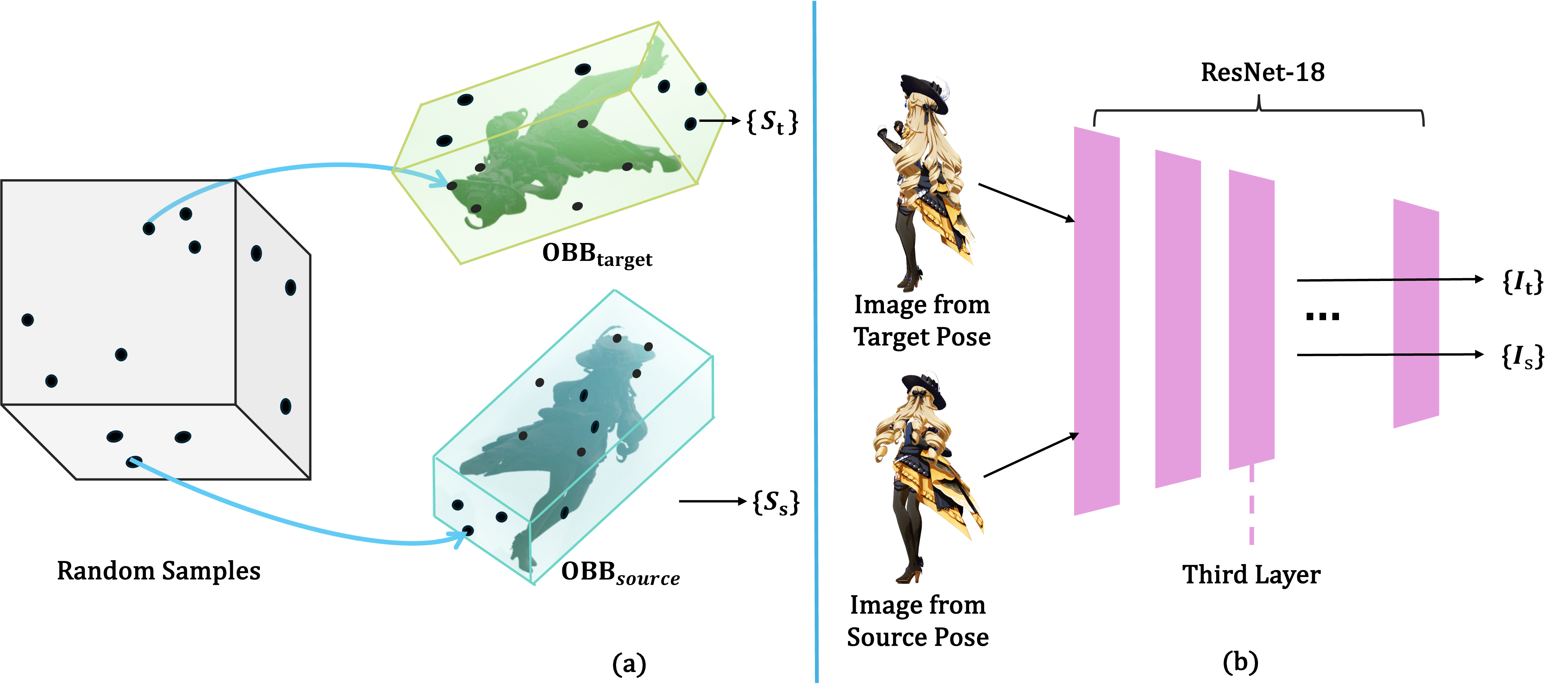

SDF- and image-feature-augmented OBB alignment. (a) Random points sampled on a unit cube are mapped to the OBBs of the source and target poses; their SDF values yield the geometric term. (b) Image features I_s, I_t are extracted from the third residual block of ResNet-18 and used in the visual term.

Fine registration

The coarse transform τ* initializes the fine stage. We pick cross-pose image pairs whose camera extrinsics are close after applying τ*:

trace( E₁ · E′₂⁻¹ ) < ε, E′₂ = τ* · E₂

eLoFTR matches the selected pairs in 2D; matched pixels are lifted to 3D by tracing camera rays and snapping to the zero-level sets of the learned SDFs. We then optimize the rigid transform T = (R, t) by minimizing

L_fine = κ( L_sdf ) + λ · L_rotation

where L_sdf is a bidirectional SDF-consistency term that pushes transformed source points to the target zero-level set (and vice versa), L_rotation = ‖R^TR − I‖ keeps R orthogonal, and κ is a robust kernel.

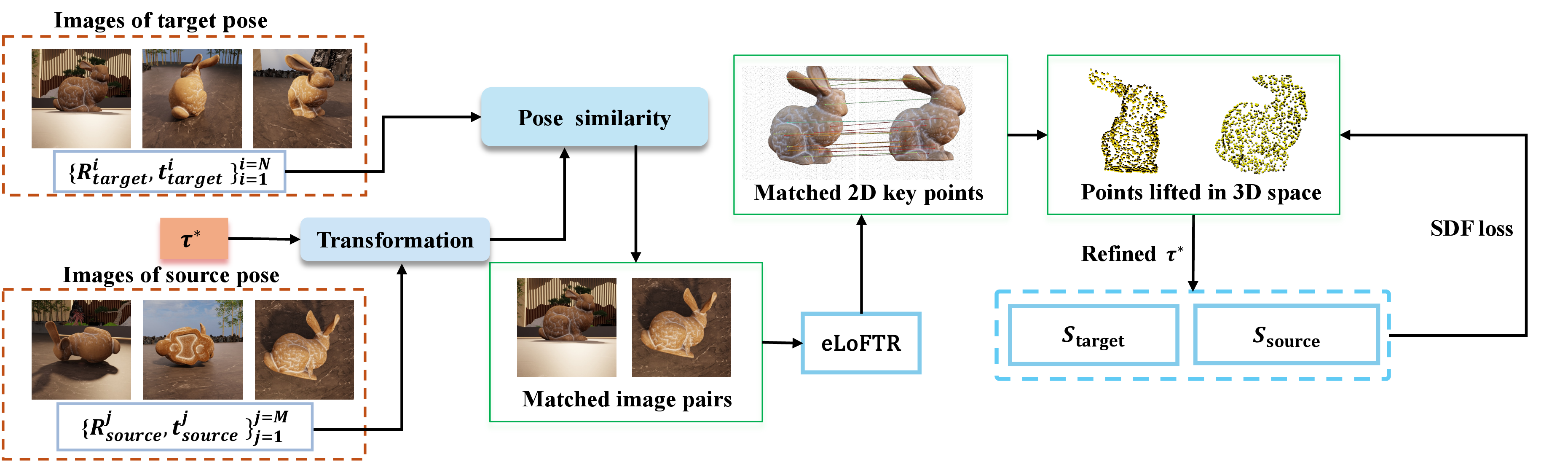

Fine registration overview — Overview of the fine registration stage: candidate image pairs are selected by camera-pose similarity, eLoFTR provides 2D correspondences, these are lifted to 3D via the learned SDFs, and the rigid transform is refined by SDF-consistency losses.

Fusion (optional retraining)

After fine registration, all camera extrinsics are expressed in a common coordinate frame. A single unified implicit surface is then jointly retrained on the merged multi-view set. This step is optional but consistently improves geometric completeness and rendering quality for objects with severe self-occlusion or fine details.

Dataset

We construct a benchmark of 18 objects — 11 synthetic and 7 real-world — each captured under three poses with 30–40 multi-view images per pose. Synthetic data is rendered with BlenderNeRF + Blender. Real captures use an iPhone, with intrinsics and extrinsics calibrated against a 1m × 1m ArUco marker board so that all poses share a common metric scale.

Results

Qualitative comparison

We compare against DReg-NeRF, Reg-NF, and GaussReg on objects with large pose variation, complex topology, partial symmetry, and severe self-occlusion. PoseFusion successfully aligns all three poses and produces coherent, complete reconstructions where baselines fail or diverge by tens of degrees.

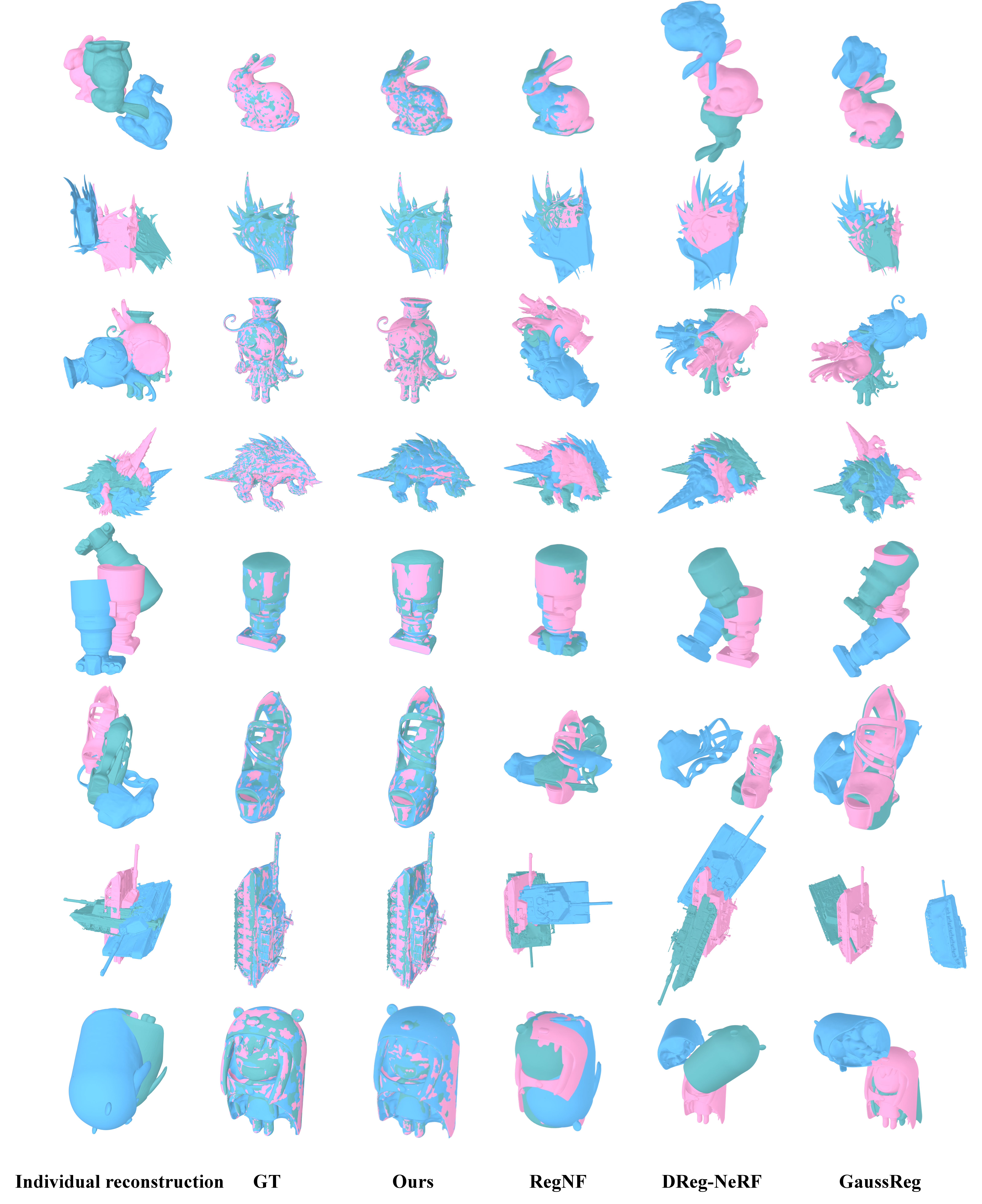

Qualitative registration comparison with DReg-NeRF, Reg-NF, and GaussReg. Colors indicate reconstructions from different object poses.

Fusion improves geometry & rendering

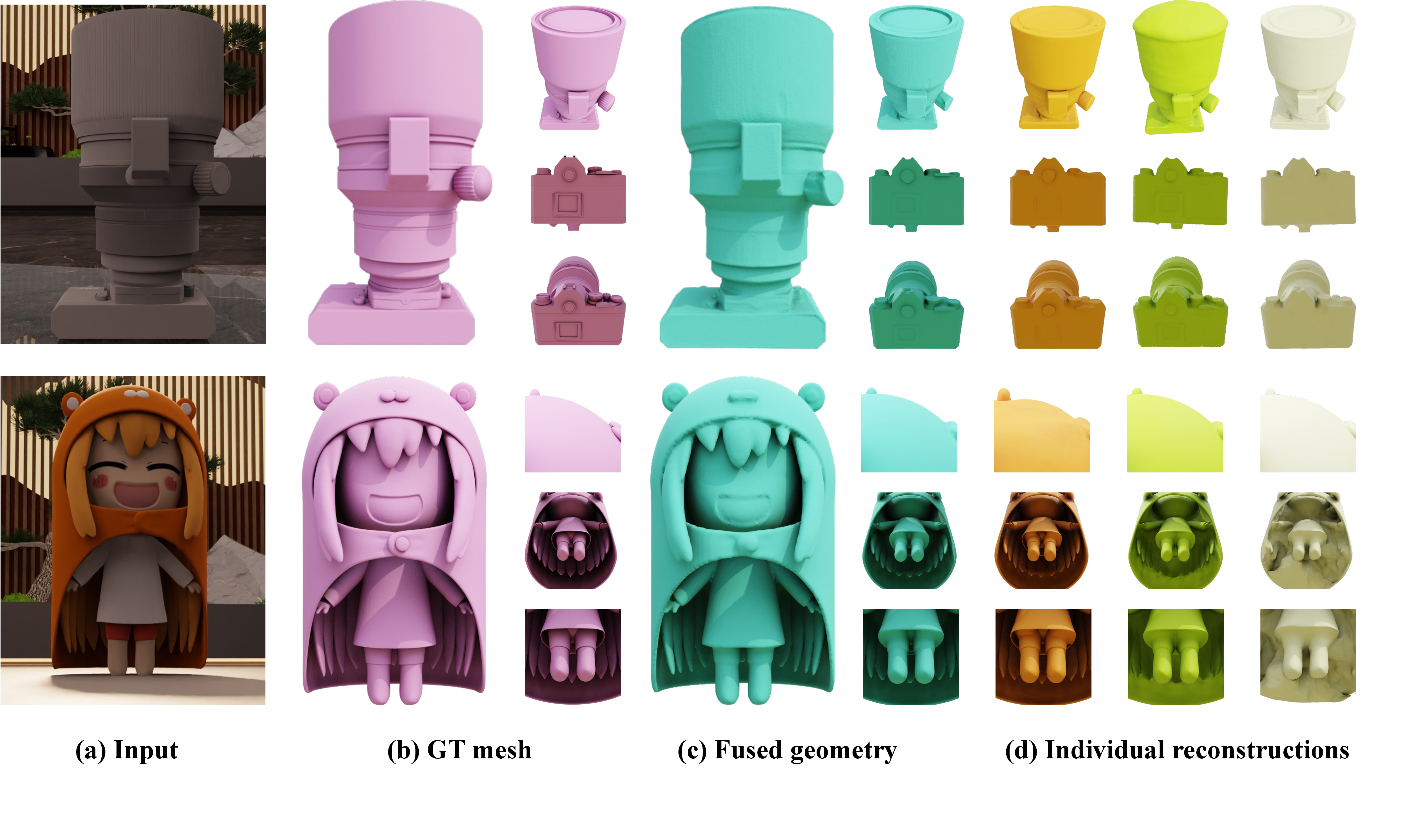

Fused vs. per-pose reconstructions — Visual comparison of the final fused geometry (c) and individual pose-wise reconstructions (d). Highlighted regions show details missing or distorted in single-pose results that are recovered after fusion.

Quantitative comparison (synthetic)

Lower is better for both rotation error R (degrees) and translation error T (×10²). Each cell reports source₁ / source₂; ``—'' indicates a failed run.

Metric	Method	Bunny	Book	Nikon	Heel Slipper	Figurine A	Tank	Monster	Figurine B	Rubik's Cube	Lego
R (°) ↓	Reg-NF	3.62/1.84	0.29/0.27	—/—	—/—	—/—	—/—	—/—	—/—	—/—	—/—
	DReg-NeRF	—/—	—/—	—/—	—/—	—/—	—/—	—/—	—/—	—/—	—/—
	GaussReg	13.98/—	10.21/22.27	—/—	3.27/—	—/—	—/—	—/—	25.29/—	—/—	—/—
	Ours	0.09/0.02	0.11/0.18	0.09/0.11	0.12/0.07	0.01/0.03	0.14/0.09	0.03/0.03	0.04/0.06	0.08/0.11	0.05/0.20
T (×10²) ↓	Reg-NF	1.47/0.75	0.13/3.84	29.56/23.0	26.25/18.68	21.29/—	—/—	—/—	—/—	—/—	—/—
	DReg-NeRF	11.48/15.11	14.7/12.3	27.72/1.33	2.36/15.55	13.05/12.41	—/—	—/—	—/—	—/—	—/—
	GaussReg	2.40/26.58	1.13/15.15	7.83/—	2.73/—	30.09/—	—/—	—/28.40	11.69/—	—/—	—/—
	Ours	0.10/0.02	0.06/0.03	0.07/0.14	0.03/0.02	0.01/0.02	0.13/0.10	0.03/0.02	0.03/0.06	0.14/0.10	0.07/0.18

BibTeX

@article{HOU2026104101,
  title   = {PoseFusion: Joint Registration and Fusion of Pose-wise Neural Implicit Surfaces for Multi-pose 3D Reconstruction},
  author = {Guanli Hou and Yuanmu Xu and Tenglong Ren and Jiangbei Hu and Fei Hou and Peng Song and Ying He},
  journal = {Computer-Aided Design},
  volume = {199},
  pages = {104101},
  year = {2026},
  issn = {0010-4485},
  doi = {https://doi.org/10.1016/j.cad.2026.104101},
}
